Navigation

• Sitemap >> Masters >> Tank Master
  or
• Menu Bar >> Masters >> Tank Master

Introduction/Purpose

The Tank Master module allows admin to add new tanks with all the required tank details.

Dependencies

Tank Master List

All the tank masters will be displayed on the tank masters list screen.

To view the tank masters list, there are two ways as mentioned below.

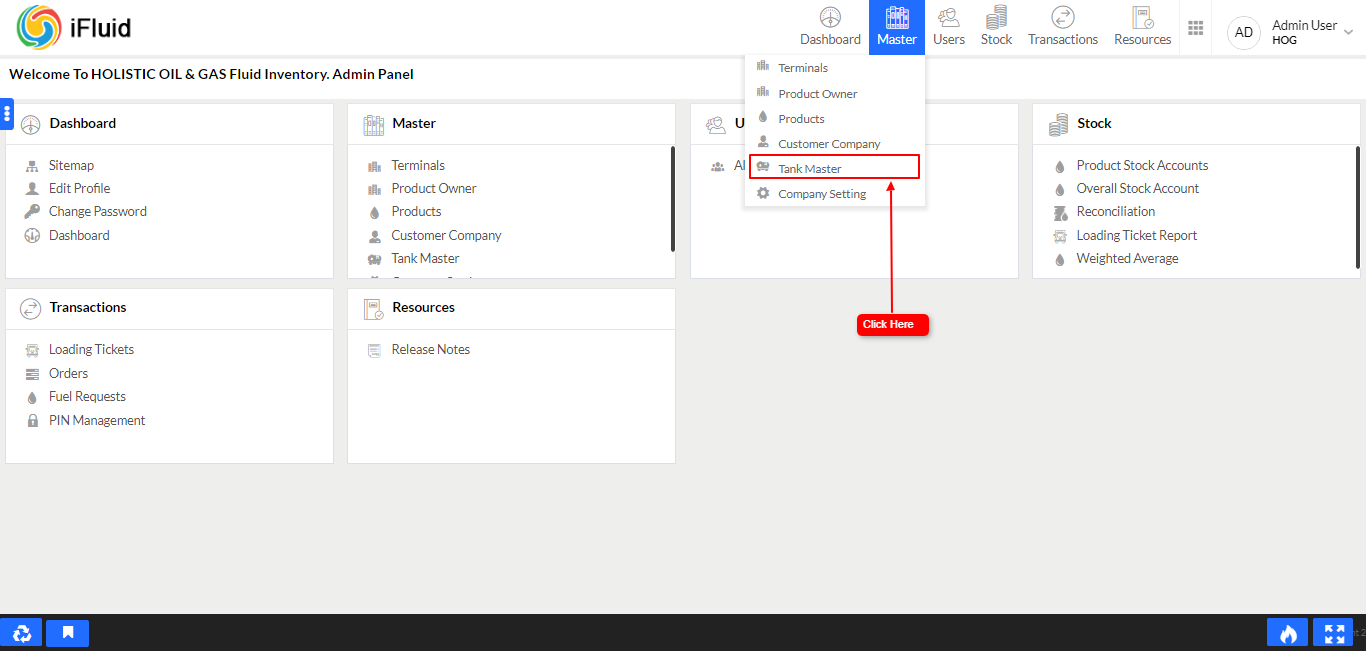

• Click on the “Tank Master” from the menu under the “Masters” module on mouse hover as shown below.

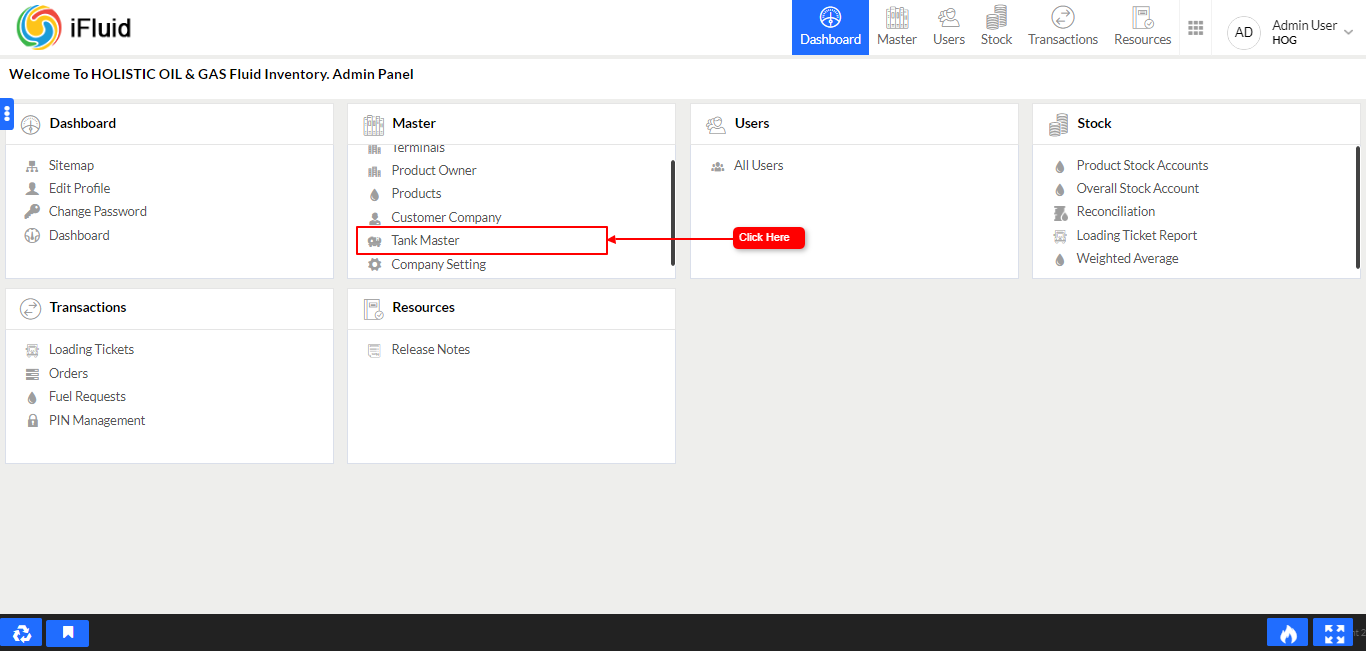

• Click on the “Tank Master” from the site map under the “Masters” module as shown below.

Add A New Tank Master

To add a new tank master in the system, follow the below steps.

Step 1: To view the tank master list, follow the steps mentioned in the section tank master List.

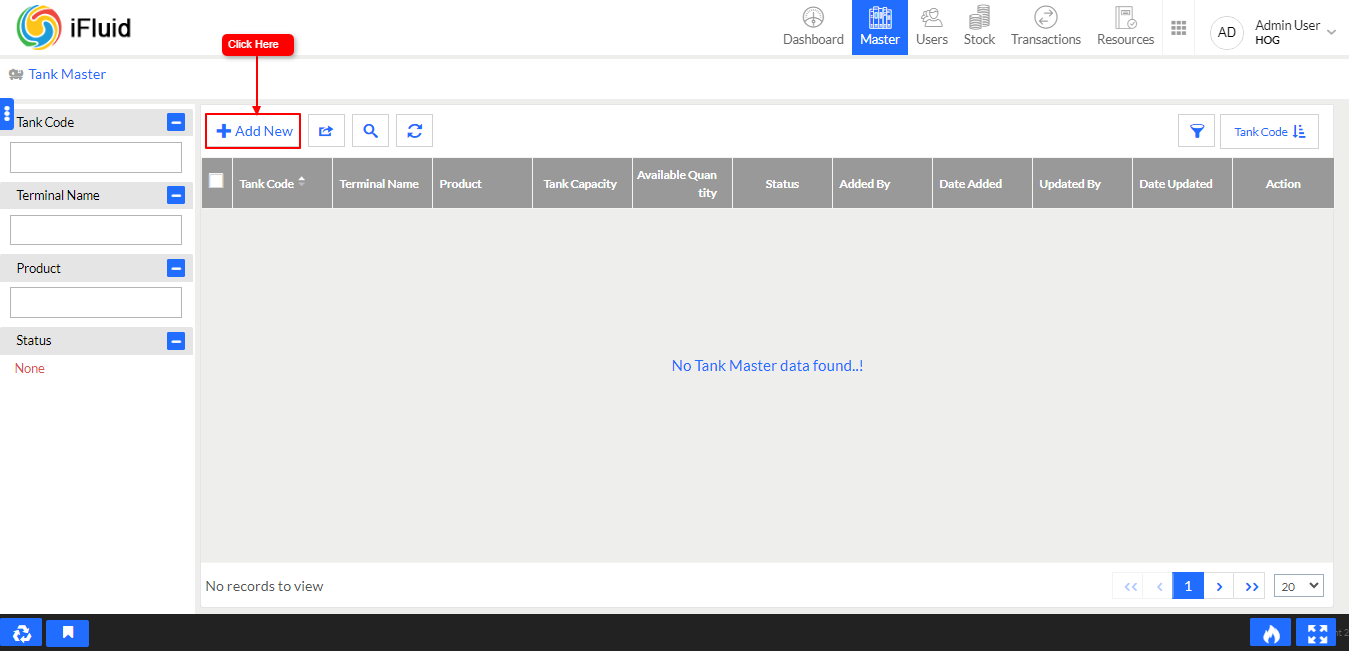

Step 2: Click on “ Add New” to add a new tank master in the system as shown below.

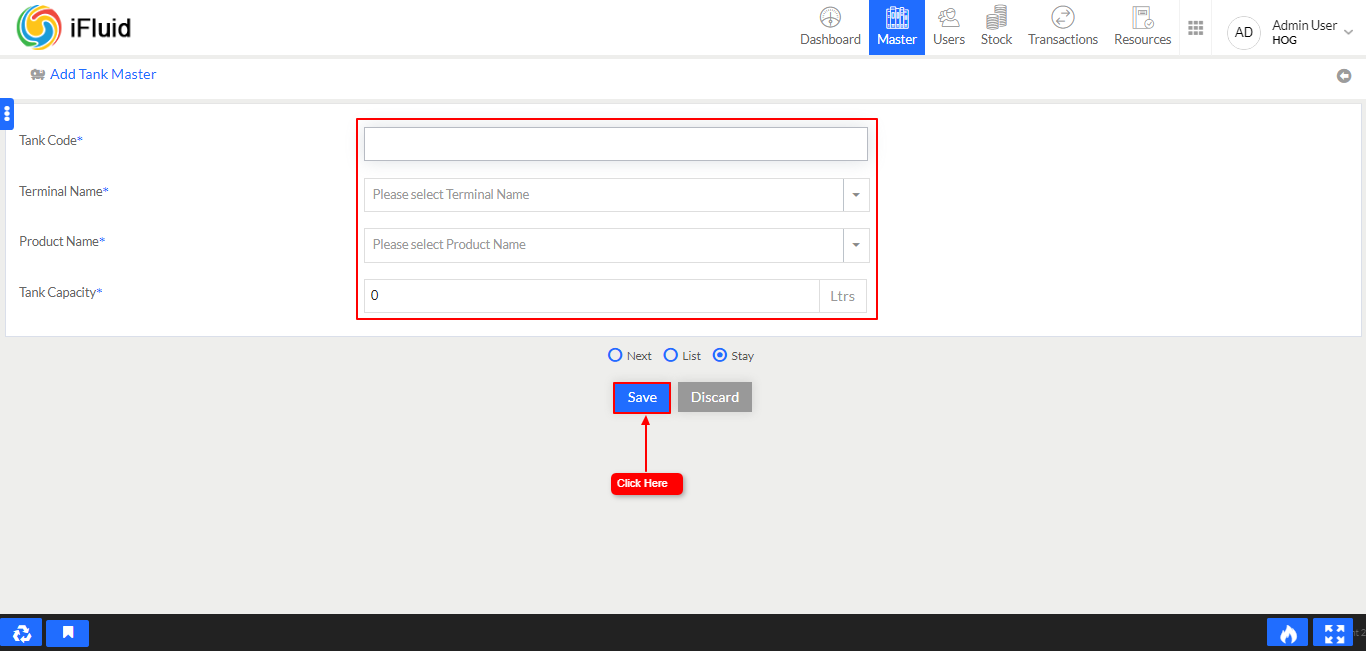

Step 3: Fill all the mandatory fields (marked with *) in the “Add Tank Master Form” as described and click on the “Save” button to save the new Tank Master in the system as shown below.

• Tank Code: Enter the tank code.
• Terminal Name: Choose the terminal name from the drop down.
• Product Name: Product name from the drop down.
• Tank Capacity: Enter the tank capacity in liters.

Tank Master Details

To View the details of the tank master, follow below steps.

Step 1: To view the tank master list, follow the steps mentioned in the section  tank master List.

Step 2: Click on tank code in the tank master list to view tank master details and click on added by/updated to view the details of the user as shown below.
